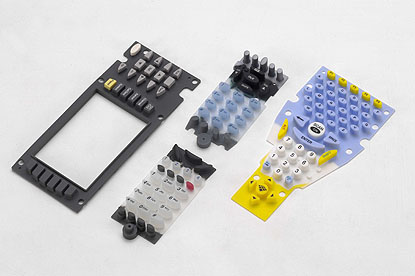

KEY PAD

　

Features
　
　 Design Force
　
50g
75g
100g
125g
150g
175g
200~250g
250.1g and up
± 15g
± 20g
± 25g
± 30g
± 35g
± 40g
± 50g
± 30%
　 　
　 Physical Characteristics
　
　

　

UL Flammability Rating

Specific Gravity at 25°C

Durometer (Shore A)

Tensile Strength (Kg/c㎡)

Compression Set %*

Insulation Breakdown

Volume Resistivity
Conductor
carbon pill
　
1
65±5°
70
20
　
5
Insulator
silicone
94HB
1.1~1.4
40~80±5°
55~75
11~22
26kv/mm
3×10 ~10
　 　
　 Mechanical Characteristics
　
Key Stroke
Actuation Force
Operating Life
Operating Temperature
Storage Temperature
0.0~5.0 mm
20~500 grams
500K actuations (typical)
-20~+70°C**
-40~+250°C**
　 　
　 Electrical Characteristics
　
Contact Resistance
Insulation Resistance @ 500VDC
Contact Bounce
Contact Rating
Dielectric Strength
< 200 ohms***
>100 Mohms
< 12 msec
30mA @ 12VDC .5 sec.
>1 min. @ 500V RMS
　
　
　
　 　

　 　
